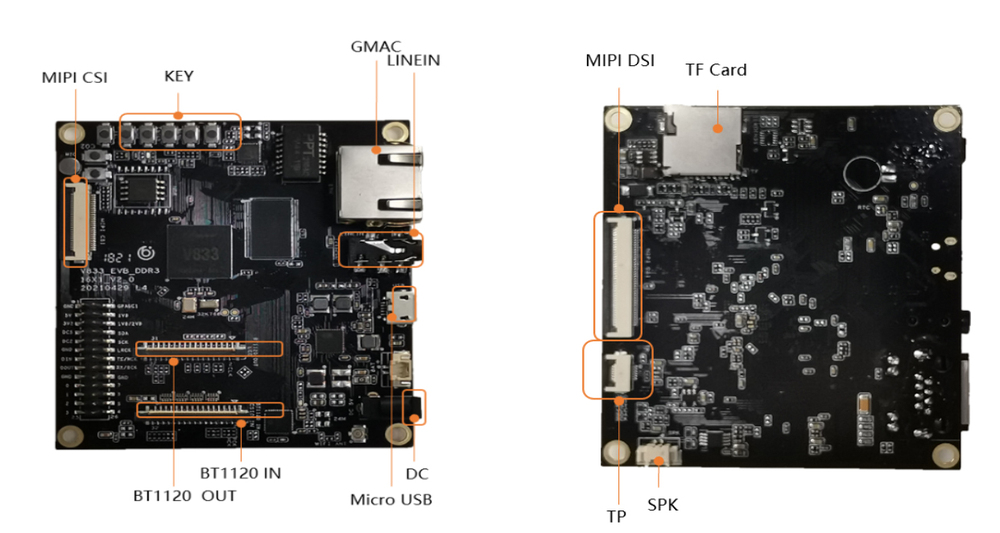

Lindenis V833 cost-effective 1080P AI coding development board

1.Introduction：

    Lindenis V833 is a high-performance, low-power professional AI coding development board with various interfaces. It is designed based on Allwinner SOC V833 and can be equipped with Tina Linux or Melis4.0 RTOS system.

2.Key Features

    (1)1080P Smart Encoding

• H.264 BP/MP/HP, H.265 MP, JPEG Baseline encoding

• I/P/Dual P frame H.264/H.265 encoding

• Real-time multi-stream H.264/H2.65 encoding.

• CBR, VBR modes，2kbps~100Mbps

• JPEG   snapshot performance of 1080p@60 independently

• Encoding of 16 ROIs

    (2)SOC

• CPU ：dual-core Cortex-A7

• Process：28nm

• Support 16-bit DDR3 / DDR3L, up to 800MHz

• Support 16-bit DDR2, up to 533MHz

• Memory capacity up to 3GByte

(3)Professional Image Effects

• Single ISP：Maximum performance 2592 x 1936@30fps

• Adjustable 3A functions(AE, AWB, AF)

• Support highlight suppression and backlight compensation

• Support bad pixel correction, 2D/3D denoising

• Support 2F WDR and Local Tone mapping

• Support Electronic Image Stabilization   Engine

(4)Various interfaces

• MIPI-CSI2

• BT1120 IN/OUT

• Line-in/Line-out

• I2S and MIC input

• WiFi 2.4G

(5)NPU

• Maximum performance up to   0.4Tops

• Support Conv, Activation, Pooling, BN, LRN,   FC/Inner Product

• Suitable for face detection, face recognition, object detection and so on

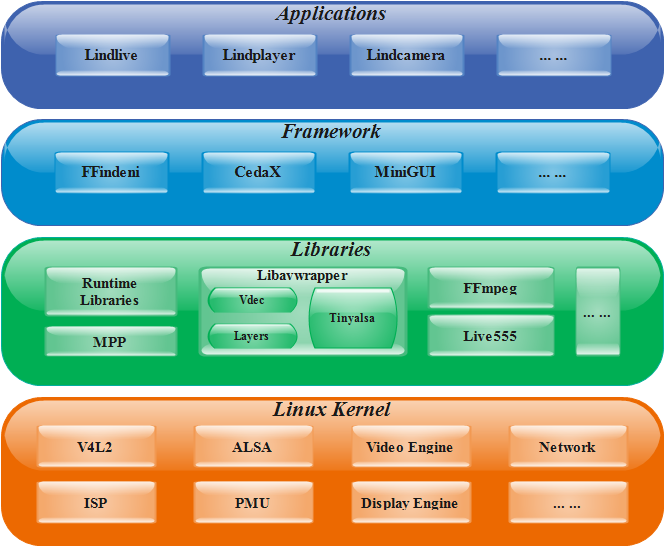

3.Software System

    Tina Linux SDK

（1）Lindenis Video SDK

• Base on Linux(OpenWrt) Deep customization 。

• Focus on video encoding and decoding, with rich application

• Easy to customization，and can be transplanted to SPINOR/16M

（2）Applications

• Lindlive： Can be used as Low-latency streaming server 。

• Lindplayer：video player

• Lindcamera：camera app（preview, video record, take picture）

（3）Framework

• FFindeni：multimedia frameworks developed by Lindenis

• CedarX：released by Allwinner

• MiniGUI： A small and powerful open source Linux graphical UI

（4）Libaries

• MPP : multimedia library released by Allwinner

• Libavwrapper：A/V library released by Lindenis

• FFmpeg： Open source audio and video processing software

• Live555：base on open source stream media protocol , developed by lindenis

（5）Kernel

Linux-4.9

Melis4.0 RTOS SDK

The Melis RTOS is a lightweight   IoT embedded operating system of Allwinner for the IoT field. It is committed to building a multimedia, voice, and cloud integrated IoT infrastructure platform with extreme performance, minimalist development, rich components, network connections, and A/V codec function.

The Melis RTOS is based on the RT-Thread kernel and integrates multimedia frameworks such as V4L2, OMX, and MPP. It has strong advantages in multimedia processing, especially encoding and decoding, and can be widely used in multimedia processing, sensor networks, and the development of smart home products
