1.Introduction：

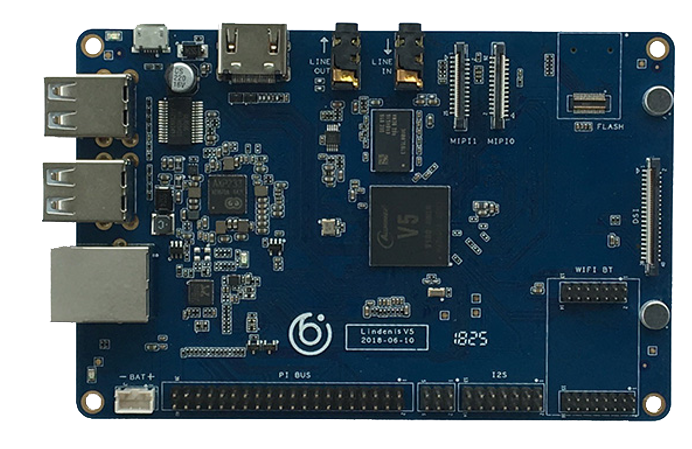

Lindenis V5 is a cos-teffective artificial intelligence video processing development board. Based on the design of Allwinner V5 V100, it has rich interfaces and runs on the Linux operating system. Builtin artificial intelligence acceleration engine and Allwinner ISP 5.0. Support AI video analysis, 4K intelligent encoding and 360 panoramic hard stitching,
2.Key Features
(1)4K Smart Encoding
H.264 BP/MP/HP, H.265 MP, MJPEG/JPEG baseline encoding
I/P Frame, Smart P frame reference
Real-time multi stream H.264/H2.65 encoding, 3840x2160@30fps+VGA@30fps+3840x2160@1fps snapshot
Supports CBR and VBR mode, 2kbps~100Mbps
H265/H264/MJEPG decoding, up to 4K@30fps
(2)Intelligent Video Analysis
Face detection and recognition
Intelligent motion detection
Human counting
Vehicle license plate recognition
Binocular DOF image
(3)360 Panoramic Stitching with Hardware Acceleration
(4)Professional Image Effects
Dual individual ISP, ISP1 supports 4244x3168, ISP2 supports 3264x2448
Adjustable 3A functions (AE, AWB, and AF)
Highlight compensation, backlight compensation, gamma correction, and color enhancement
Supports defect pixel correction, 2D/3D denoising
Supports sensor built-in WDR, 2F-Frame/Line base WDR, Local Tone mapping

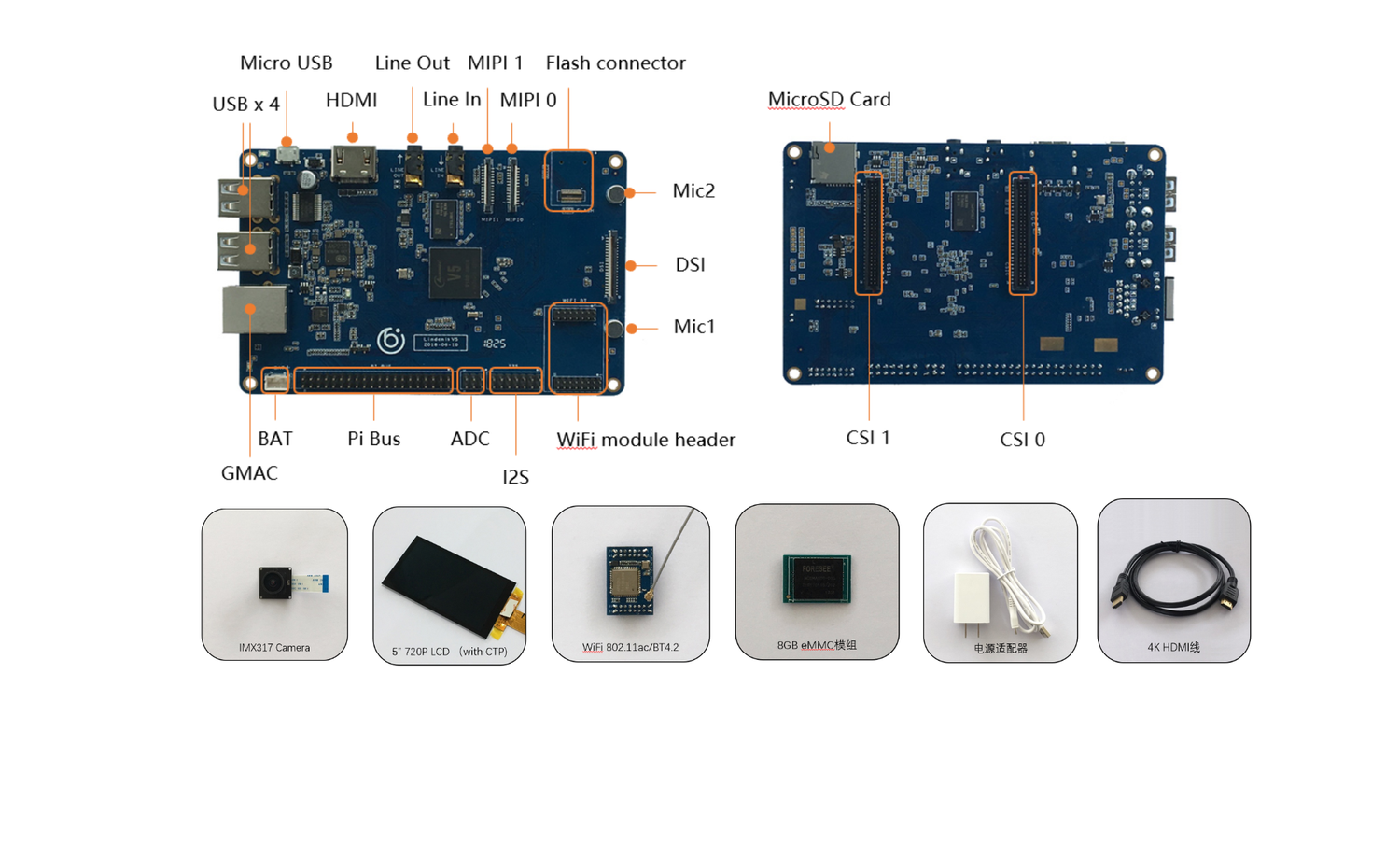

(5)Various interfaces
Supports 2 x MIPI-CSI2, 4 x AHD, 1 x DVP input
Supports BT1120 input/output
Supports Line-in/Line-out
Supports Dual-channel differential MIC inputs
Supports WiFi 802.11ac / BT4.2 (option)

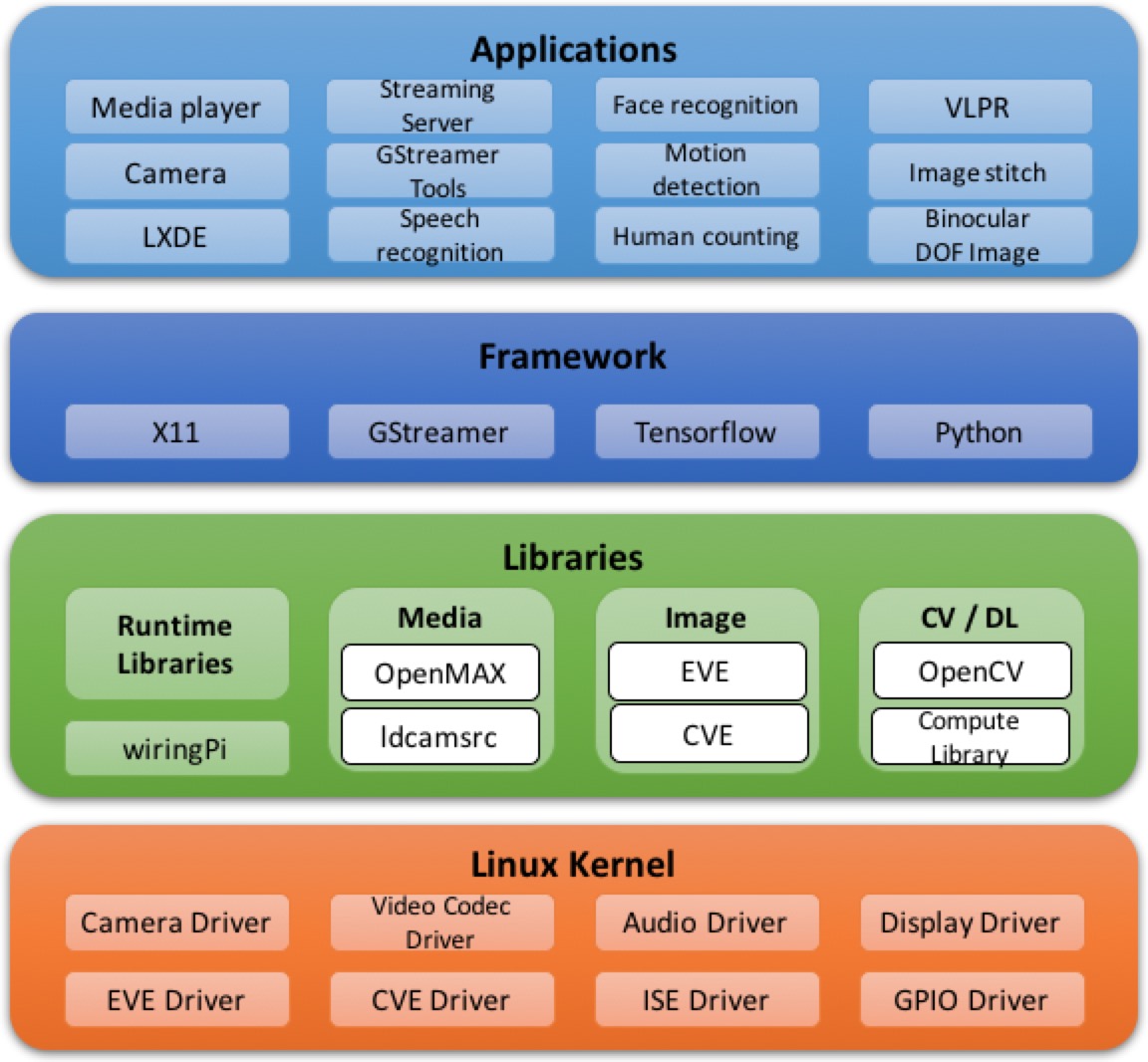

3.Software System
（1）Linbian OS
The recommended OS for normal use on Lindenis V5.
A free operating system based on Debian, optimised for the Lindenis V5 hardware. You can use it to build some creativity app, or use it for engineering validation test. Feel free to coding and compiling on it directly, no need to cross build anymore.
Scalable. The image is easy cut to 16MB and store on SPINOR
（2）Applications
Media player：A GStreamer based video player.
Camera：A GStreamer based camera app.
Streaming Server：A GStreamer based RTSP server.
Face recognition：A face detection and recognition app.
Motion detection：A intelligent motion detection app.
Human counting：A human counting app
VLPR：A vehicle license plate recognition app
（3）Framework
（4）Libaries
OpenMAX: Video decoder / encoder plugin for GStreamer
ldcamsrc: Lindenis camera source plugin for GStreamer
EVE: is a embedded vision engine
CVE: is a compute vision engine
OpenCV / Compute Library: is open source compute vision and machine learning libraries
4.Purchase Link
Chinese users：https://shop581648038.taobao.com
Other users：https://pt.aliexpress.com/store/4504082
